Holiday Electrical Successes and Failures
December 28, 2013
As I’m rattling around the house the past few days recovering from a really poorly-timed evil cold/cough, not feeling well enough to actually go out and do anything but not so bad that I’m flat-out in bed, I figured I’d catch up on some projects.
I got all the parts in before Christmas to do an add-on for Anna’s sous vide cooker that I built a while back. Anna wanted the ability to do sous vide in a smaller container, so we ordered a cheap hotplate, an aquarium pump, an additional PT100 temperature sensor, and some spring clamps. In this add-on, my existing PID controller box would be used to run the hot plate; when I built the controller box, it was with the intent that it could be used to control other things, so it has a 1/4 phono jack as the temperature sensor input, and a couple of 120V wall outlets (one switched by the PID, the other always on). The aquarium air pump will be used to bubble air in the sous vide bath, to keep the heat even.
I soldered up the PT100 to a 1/4” stereo phono plug I had from the previous sous vide, plugged everything in, and re-calibrated the PID to the new setup. Looks like it will work great!
On to the next project.
The Ikea halogen track lights in our office went out just before Christmas. I took the power supply apart, and it’s just a rectifying transformer of the cheapest sort - should be very easy to replace.

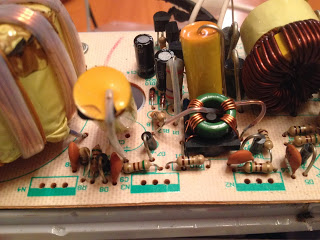

For curiosity’s sake, I broke open the case of the transformer. From the photo, you can see that the circuit board is populated with through-hole components, like you’d typically see in a DIY kit or something cooked up in my garage – not seen in consumer electronics much since the early 1980s. Why? Because building it this way depends on human labor, not machinery, and there are still places in the world where that’s by far the cheapest way to do it.
Exploitation of workers aside, this box does a pretty straightforward job, converting 120VAC into 12VDC, with some nice fringe benefits like turning on a bit gently so as to not shock the poor halogen bulbs, and perhaps a safety feature or two (like a tiny, non-replaceable fuse…)
Finding a replacement online was easy. Finding one that looked like it would be a drop-in replacement, and had at least a few reviews that didn’t read like “DOA”, “worked for a week and then died”, “stay AWAY from this!” and the like, proved harder. I settled on a power supply that seemed to have decent reviews, and wasn’t the cheapest of the pile, and ordered away. (Power supplies like this seem to run from about $10, to $60… a replacement Ikea lamp is about $80. I opted for a ~$20 part.)
The power supply arrived today, and I was eager to alleviate the darkness that has pervaded the office for a few weeks now. I wired it in to the lamp, and fired it up.
Hm. Looks a bit… dim. Anna agrees.
#@$%&!

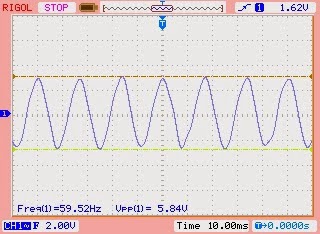

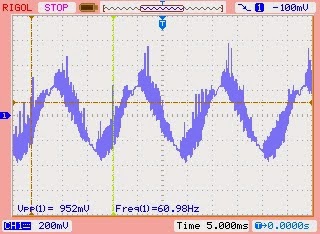

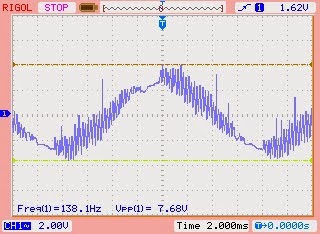

I fire up the ‘scope to see what the heck this thing’s putting out… and holy moly, that’s an ugly waveform! But, it’s driving lamps, so it really shouldn’t matter too much, as long as it’s about the right shape.
The new power supply is only supplying about 6V, peak-to-peak, running 5 x 20W bulbs. It’s a 150W supply, so it should be OK with that load. I tried running 1 x 10W bulb, and it really didn’t care for that… not enough load I think. Next, I tried 3 x 20W – and got pretty much the same as for 5 bulbs. Crumbs. I’ll be sending it back, and now I have to find a different power supply and throw the dice again.
